Plug Flow vs CSTR Digester

Anaerobic digesters are designed to efficiently break down organic waste into biogas and digestate. Two of the most widely used reactor types are Plug Flow Digesters and Continuous Stirred Tank Reactors (CSTR). Each has distinct operational characteristics, advantages, and applications.

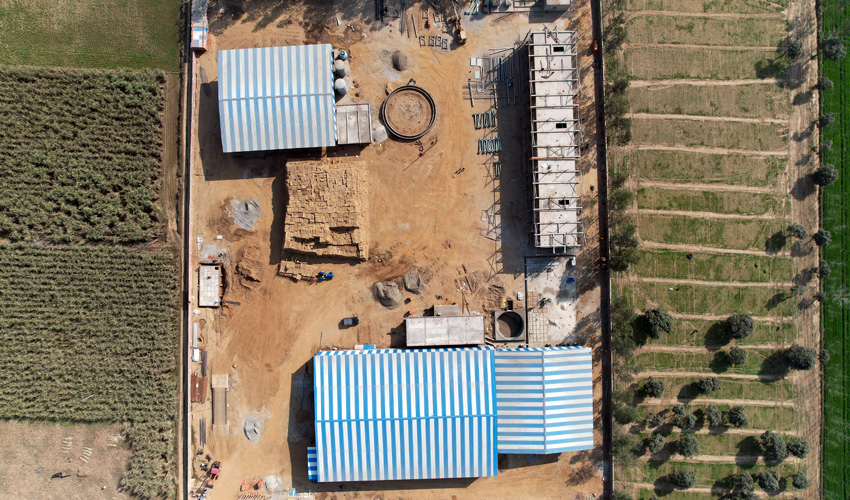

Plug Flow Digester

A Plug Flow Digester is a long, narrow reactor where organic material moves in one direction—like a “plug”—with minimal back-mixing.

Key Features

• Suitable for high-solids feedstock (typically 11–15% solids)
• Material flows sequentially from inlet to outlet
• Minimal mechanical mixing required
• Stable and predictable digestion process

Advantages

• Lower energy consumption due to limited mixing
• Simple design and operation
• Ideal for agricultural waste like cattle manure

Limitations

• Less flexibility in handling varying feedstock
• Risk of clogging if not properly managed
• Limited control over process conditions

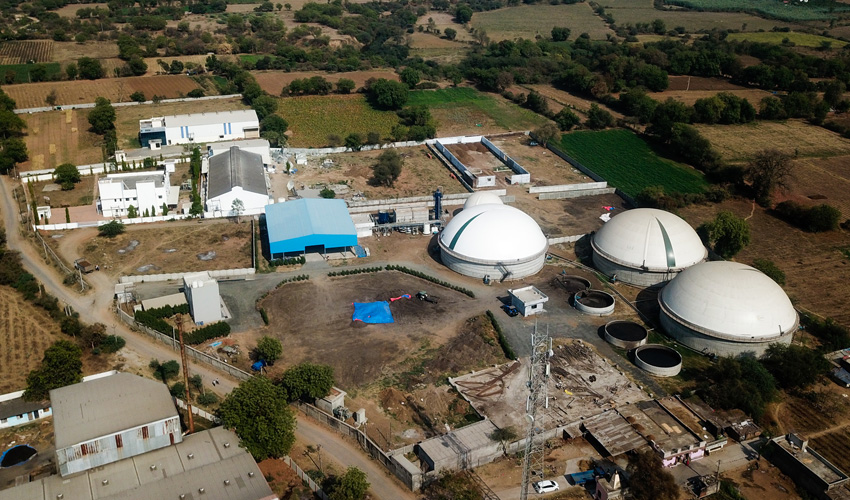

Continuous Stirred Tank Reactor (CSTR)

A CSTR Digester is a fully mixed reactor where contents are continuously stirred to maintain uniform conditions throughout the tank.

Key Features

• Suitable for liquid or semi-solid feedstock (typically 3–10% solids)
• Continuous mixing ensures homogeneous environment
• Consistent temperature, pH, and nutrient distribution

Advantages

• High process control and efficiency
• Ability to handle diverse feedstock (industrial, food waste, sludge)
• Reduced risk of stratification or sedimentation

Limitations

• Higher energy consumption due to mixing
• More complex design and maintenance
• Higher operational costs

Key Differences

Parameter	Plug Flow Digester	CSTR Digester
Flow Type	Unidirectional (plug)	Completely mixed
Mixing	Minimal	Continuous mechanical mixing
Solids Content	High	Low to medium
Energy Requirement	Low	High
Feedstock Flexibility	Limited	High
Maintenance	Low	Moderate to high
